Compaq Presario 2200 Series

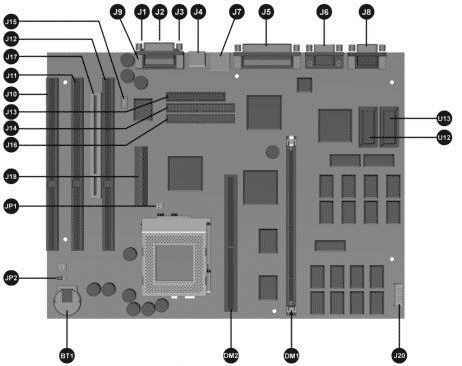

| Compaq Presario 22xx Series System Board External Connectors | ||
|---|---|---|
| Function | Description | Designator |
| Video | 15-Pin Header | J8 |
| Serial | DSUB 9-Pin | J6 |
| Parallel | DSUB 25-Pin | J5 |
| Joystick/MIDI | DSUB 15-Pin 2 Row | J9 |
| USB Port | USB Connector | J7 |
| Keyboard | Miniature 6-Pin | ½ J4 |
| Mouse | Miniature 6-Pin | ½ J4 |
| Microphone | Mini Stereo | J3 |
| Line Out | Mini Stereo | J2 |
| Headphone/Speaker Out | Mini Stereo | J1 |
| Compaq Presario 22xx Series System Board Internal Connectors | ||
|---|---|---|
| Function | Description | Designator |
| CMOS Clear | 2-Pin Header | JP2 |
| DIMM Socket | 144-Pin DIMM | DM1 |
| Video Memory Expansion | 30-Pin Small Header | U12, U13 |
| Clock Speed | 5-Pin Header | JP1 |
| Cache Socket | 160-Pin DIMM | DM2 |
| Button/Light Board | 20-Pin Header | J20 |
| Internal Line In (CD Drive) | 4-Pin Header, Key 2 | J15 |
| Power Supply | 12-Pin ATPWR Header | J18 |
| Replacement Battery | 4-Pin Header, Key 2 | BT1 |
| Primary IDE Drive (Hard Drive) | 40-Pin Header, Key 20 | J14 |
| Secondary IDE Drive (CD Drive) | 40-Pin Header, Key 20 | J16 |
| Diskette Drive | 34-Pin Header | J13 |
| ISA slots | ISA Slot | J10, J12 |
| ISA/PCI Shared Slot | ISA and PCI slot | J11, J17 |
Although the 2200 model doesn't offer a Processor Upgrade, the other models in the 22xx Series do have upgrade options.
| Processor frequency selection, MHz - JP1 | |||
|---|---|---|---|
| CPU Frequency MHz | Pins 1-2(BF0) | Pins 3-4(BF1) | Pins 5-6(BF2) |
| 133 | on | off | off |
| 166 | on | on | off |
| 200 | off | on | off |
| 233 | off | off | off |
| 266 | on | off | on |
| 300 | on | on | on |
| 333 | off | on | on |
| 366 | off | off | on |
