Packard Bell 760 M/Board

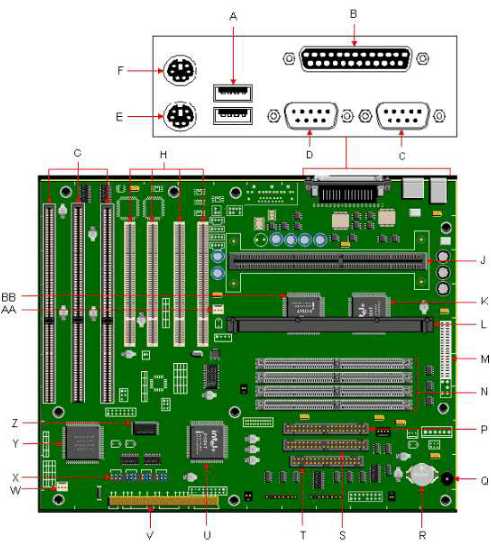

760 Motherboard Diagram

Item    DescriptionItem    Description
AUSB PortsPSecondary IDE Connector
BParallel PortQPiezo Speaker
CSerial Port BRBattery
DSerial Port ASPrimary IDE Connector
EPS/2 Keyboard PortTFloppy Drive Connector
FPS/2 Mouse PortU82371SB PIIX3 Chipset
GISA SlotsVFront Panel Connectors
HPCI SlotsWFan Connector
JSlot1 CPU ConnectorXJumper Block J9C1
K82441FX PCI/Memory Controller (PMC)     YPC87307VUL Super I/O Controller
LHeatsink SupportZE28F002BXT80System BIOS
MPrimary Power ConnectorAAFan Power Connector
NSIMM SocketsBB82442FX Data Bus Accelerator

Specification

  • Battery : Lithium 3V.
  • BIOS : Intel® E28F002BXT80 2 MBit Flash EPROMSystem BIOS by AMI.
  • Bus : PCI/ISA based system bus. 66MHz maximum bus speed.
  • Cache : 32K level 1 cache. 512 KB level 2 cache in the Single Edge Contact cartridge.
  • Case : ATX Mini-Tower.
  • Chipset :
    • Intel® 82441FX PCI/Memory Controller (PMC).
    • Intel® 82442FX System Controller (DBX).
    • Intel® 82371SB PCI chipset (PIIX3).
  • CPU : Intel® Pentium™ II processor with MMX technology.
  • I/O : PC87307VUL I/O Controller.
  • Interfaces : 2 DB-9 Serial ports.
    • 1 DB-25 Parallel port.
    • 1 PS/2 keyboard port.
    • 1 PS/2 mouse port.
    • 2 USB connectors.
  • Keyboard : PS/2™ Style, optional 104 - key enhanced multi-media.
  • Mouse : PS/2™ Style, optional 2 button mouse with scrolling wheel.
  • Power Supply : 200 Watts, 115V (5A) / 230V (3A) switchable.
  • RAM : Four 72-pin SIMM sockets, upgradable to 256 MB total RAM.
  • Video Options : Diamond Stealth (Dm-975) video card (optional)
  • Audio Options :
    • Yamaha OPL3-SA3 codec audio controller (optional).
    • Yamaha OPL4-ML wavetable synthesizer (optional).

Jumpers

J9C1 Jumper Diagram

BIOS Recovery (J9C1-A)

This jumper is for recovering BIOS data from a diskette in the event of a catastrophic failure. The default setting is pins 5-6 (normal operation). To recover the BIOS, turn off the computer, move the jumper to pins 4-5, then turn on the computer to perform BIOS recovery. After recovery, turn off the computer and return the jumper to pins 5-6 to restore normal operation.

CMOS Clear (J9C1-C)

This jumper is for resetting the CMOS settings to the default values. This procedure must be done each time the system BIOS is updated. The default setting for this jumper is pins 5-6 (keep CMOS settings). To reset the CMOS settings to the default values, turn off the computer, move the jumper to pins 4-5, then turn on the computer. When the computer displays the message "NVRAM cleared by jumper," turn off the computer and return the jumper to pins 5-6 to restore normal operation.

Password Clear (J9C1-D)

This jumper is for clearing the password if the password is forgotten. The default setting is pins 2-3, (password enabled). To clear the password, turn off the computer, move the jumper to pins 1-2, and turn on the computer. Then turn off the computer, and return the jumper to pins 2-3 to restore normal operation. If the jumper is in the 1-2 position (password disabled), you cannot set a password.

BIOS Setup Access (J9C1-D)

This jumper is for enabling or disabling access to the Setup program. The default setting is pins 5-6 (access enabled). To disable access to the Setup program, move the jumper to pins 4-5.

Battery

This 3V Lithium clip in battery is replaceable with a CR2032 battery.

Flash BIOS Upgrade

  • Insert the BIOS update diskette into drive A: and reboot the system.
  • Press (enter). When the dialogue box appears.
  • The Main Menu will appear on the screen.
  • Select "Update Flash Memory Area from a file" using the Down Arrow key.
  • Press (enter).
  • The UPDATE FLASH AREA dialog box appears on the screen.
  • Select "Update System Bios".
  • Press (enter).
  • Select 1002dt0r.bio file.
  • Press (enter).
  • Press (enter) at the following screen to proceed with programming.
  • After 2 message screens, the BIOS is now re-programmed with the updated BIOS file.
  • Remove the disk from drive A.
  • Press (enter) to reboot the computer system.
  • Complete the process by running the CMOS Setup program.

Cache Upgrade

The Intel Pentium II CPU has 32K level 1 cache and 512 KB level 2 cache contained in the Single Edge Contact cartridge. The cache is non-upgradeable.

CPU Upgrades

This motherboard utilizes the SEC slot (SLOT1) , which is a staggered 242 pin Single Edge Contact slot. This motherboard is designed to be upgradable with any pin-compatible Intel® Pentium II processor. The speed of the processor can be set using the jumpers on the motherboard. The speed settings for the jumpers are in the table below.

Processor/
Bus Speed
J9C1-AJ9C1-B
(Processor)
J9C1-C
(Bus)
Host Bus
Frequency
PCI Bus
Frequency
Bus/Processor
Frequency Ratio
233Mhz/66Mhz2-32-3 & 5-62-366MHz33MHz3.5
266Mhz/66Mhz1-21-2 & 4-52-366MHz33MHz4.0
300Mhz/66Mhz1-22-3 & 4-52-366MHz33MHz4.5

Memory Upgrades

The PB760 motherboard has four SIMM sockets configured as two (0-1) banks. The upgrade memory is upgradeable to 256MB. The 72-pin SIMM sockets will accept 1MBx64 (8MB), 2MBx64 (16MB), 4MBx64 (32MB), and 8MBx64 (64MB) and 16MBx64 (128MB) extended data out DRAM SIMMs with the recommended access speed of 60ns or faster. This motherboard will accept either single or double sided SIMMs. Memory type, size, and speed can vary between sockets. This motherboard will support 36 bit SIMM modules (parity).

Once the SIMM modules are installed, the system will display the correct amount of memory, since the system automatically detects the amount installed; there are no jumper settings for memory configuration. The memory should be enabled and fully functional.


Adding RAM is the most cost effective way to boost your computer's performance.


Video Memory Upgrades

The motherboard has no on-board video graphics controller. Video RAM upgrades are dependent on the specifications of the video card being used.
